NexPro AI ANPR System Deep Dive:
Low-Cost, Easy-to-Deploy Vehicle Management for Small & Medium Sites

In an era where smart security and vehicle management demands are growing rapidly, traditional ANPR systems relying on expensive dedicated hardware have struggled to serve fragmented, budget-conscious scenarios — rural villages, residential communities, small to medium campuses, and factory yards. NexPro's AI-powered ANPR solution, built on the Seetong-compatible NVR 4.0 platform and NexPro-ANPR9017CP40Y cameras, redefines the technical barrier and implementation cost of vehicle management for these smaller deployments. Its core strengths: chip-level AI, zero additional server costs, and fully free cloud services.

This article provides a complete technical breakdown across five dimensions: hardware architecture, deployment specifications, network topology, core functions, and real-world application scenarios.

1. Core Hardware Architecture: Chip-Level AI That Restructures System Costs

The most revolutionary design aspect of this ANPR system is embedding AI computing power directly into the frontend camera chip, completely eliminating the need for a dedicated ANPR server or an expensive "smart" NVR.

1.1 Core Combination: NexPro-ANPR9017CP40Y + NexPro NVR 4.0 Series

The system logic is "Frontend Recognition + Backend Storage & Retrieval":

1.2 Compatibility Advantage: Seamless Integration with Existing Systems

One of the system's biggest strengths is mixed operation with conventional surveillance cameras. You don't need to replace your existing cameras. Simply add NexPro-ANPR9017CP40Y cameras to the same NVR — it will simultaneously manage standard video monitoring and AI-powered ANPR functions, dramatically reducing upgrade costs.

2. Camera Deployment Specifications: Precision Parameters for Maximum Recognition Accuracy

Over 90% of ANPR accuracy depends on correct installation. NexPro provides standardised deployment parameters for different lens focal lengths, covering the vast majority of small to medium site requirements.

2.1 Lens Focal Length vs. Installation Parameters

2.2 Key Installation Requirements Explained

• Mounting Height: Too high and the plate occupies too few pixels for reliable recognition. Too low and the camera is easily blocked by vehicle bonnets or pedestrians. The 2–3m recommended height for 12mm lenses is the optimal balance of long-range recognition and obstruction avoidance.
• Road Angle: The angle between the camera and the vehicle's direction of travel is the single most critical factor affecting recognition rate. Greater angles cause more severe perspective distortion of the plate. The system's maximum 30° allowable angle already exceeds industry averages, significantly reducing installation difficulty on site.
• Recognition Distance: The table shows the "optimal recognition zone" — not theoretical maximums. Within this zone, the plate occupies an appropriate pixel size in the image, and recognition accuracy consistently exceeds 99%.
• Vehicle Speed: Through optimised algorithms, the system supports vehicle recognition up to 50km/h, fully meeting the needs of non-highway roads. For speeds below 40km/h, recognition is even more stable.

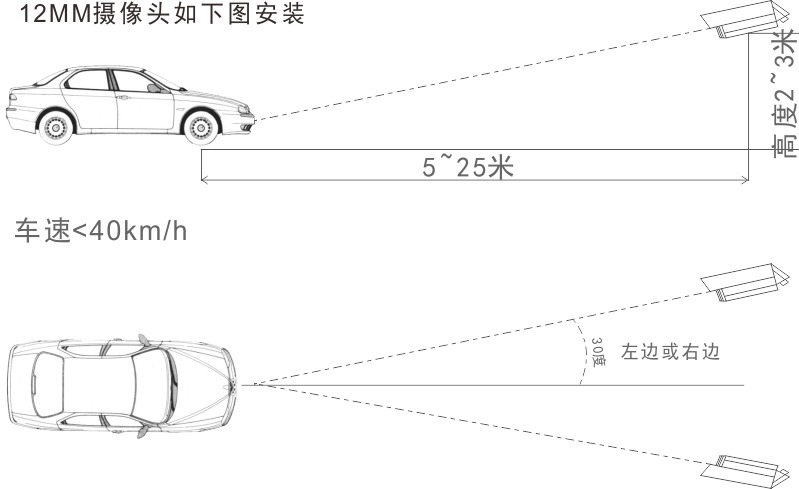

2.3 12mm Lens Standard Installation Diagram

The 12mm lens — with the widest coverage range and strongest adaptability — serves as the representative model for standard installation. Key points:

• Camera mounted at the roadside, 2–3 metres high, lens aimed in the direction of vehicle travel.
• Horizontal angle to the road centreline does not exceed 30°; can be installed on either the left or right side of the road.
• Optimal recognition distance of 5–25 metres covers a generous road section, reducing the number of cameras required.

Figure: 12mm Lens Standard Installation — Side View & Top View (Road Angle)

3. Network Topology & Cloud Services: Local + Cloud, Anytime Remote Management

The system adopts a "Local Storage Primary, Cloud Services Secondary" architecture, ensuring both data security with local access speed and convenient remote management capability.

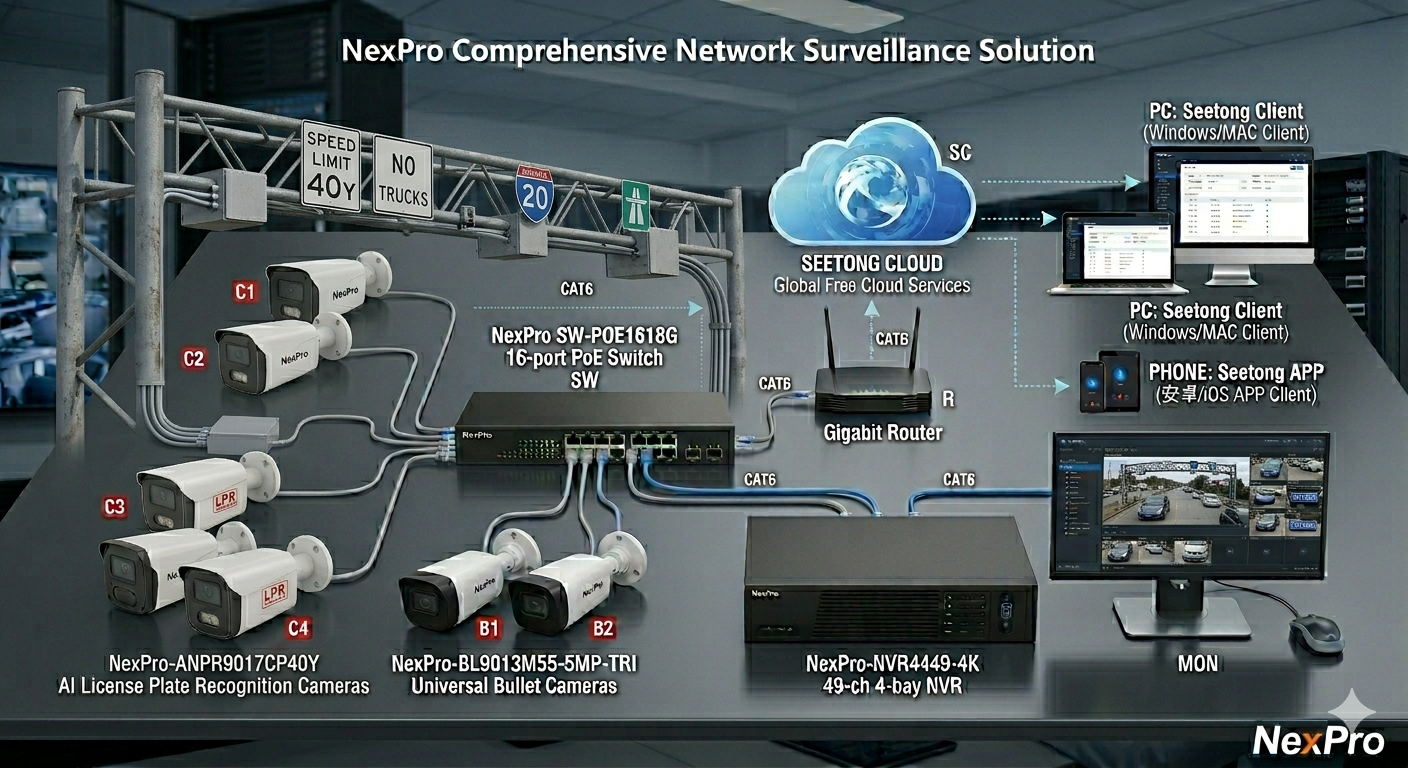

3.1 Complete Network Topology

1. Frontend Device Layer: NexPro-ANPR9017CP40Y AI ANPR cameras (with P2P cloud connectivity, supporting 4G/5G wireless transmission if needed) alongside NexPro-BL9013M55-5MP-TRI general surveillance cameras for comprehensive area coverage.
2. Network Switching Layer: All frontend devices connect via Ethernet to NexPro SW-POE1618G or SW-POE2426G PoE switches for data aggregation and power delivery over a single cable.
3. Local Storage Layer: The switch transmits data to a NexPro NVR (NVR2232-4K / NVR4449-4K / NVR8864-4K), which handles video recording and plate data storage locally with RAID-capable SATA bays.
4. Internet Access Layer: The NVR connects to the internet via a router, enabling communication with the cloud.
5. Cloud Service Layer: Based on the Seetong global cloud platform, providing free remote access services — no port forwarding, no static IP required.
6. Terminal Access Layer: Seetong Client (Windows/macOS) and Seetong APP (iOS/Android) for real-time view, plate search, and remote playback from anywhere in the world.

3.2 Seetong Cloud — Core Advantages

4. Core Functions & User Value: Solving Traditional Surveillance Pain Points

Compared with traditional "view-only" surveillance systems, the core value of this AI ANPR system lies in transforming passive monitoring into proactive management, solving the age-old problem of "finding the footage takes hours."

4.1 Intelligent Plate Search

Supports "Search Video by Plate" and "Search Plate by Image." Simply enter a plate number, and the system retrieves — within seconds — all occurrences of that vehicle across all cameras, along with the corresponding video clips. No more scrubbing through hours of footage channel by channel. Work efficiency improves by an order of magnitude.

4.2 Cross-Camera Vehicle Tracking

The system automatically correlates plate recognition data across different cameras, generating a complete travel trajectory for any vehicle. Click on a plate record to see all the vehicle's routes and timestamps within the monitored area — full journey tracking.

4.3 Multi-Terminal Remote Management

• Seetong Client (Windows/macOS): Multi-window live preview, recording playback, device parameter configuration, plate data export, and other professional functions.
• Seetong APP (iOS/Android): Live preview, alarm push notifications, remote playback, plate query — enabling managers to stay aware of vehicle movements anytime, anywhere.

4.4 Open SDK for Integration

The system provides a complete open SDK, allowing industry customers to perform secondary development. It can easily interface with parking barrier gate systems, access control systems, visitor management systems, property fee collection systems, and more — enabling complex business process automation.

5. Typical Application Scenarios: Precisely Matching Small & Medium Site Needs

This system was designed from the ground up for scenarios that don't need barrier gates — just reliable vehicle entry/exit logging. Here are the three most representative use cases:

5.1 Rural Village Roads

Rural areas have dispersed roads, low vehicle speeds, limited budgets, and no requirement for physical vehicle stopping. This system requires no barrier gate, involves simple installation, and costs a fraction of traditional solutions. It effectively records vehicle information entering and leaving villages, providing solid evidence for public security management and traffic incident investigation.

5.2 Residential Community Internal Roads

Internal passageways, car park corridors — the primary need is monitoring vehicle movement to prevent illegal parking and unauthorised vehicle entry. The system automatically records the plate and timestamp of every passing vehicle, enabling property management staff to manage and trace incidents easily.

5.3 Open Gates Without Barriers

Factory, campus, and school entrances often don't require 24/7 barrier gate operation — they just need to log vehicles entering and exiting. This system achieves automatic vehicle logging without installing barrier gates, maintaining smooth traffic flow while satisfying security management requirements.

6. Summary: Redefining the Standard for Small-Scale Vehicle Management

NexPro's AI ANPR system — through chip-level AI and modular design — reduces the implementation cost of license plate recognition by an order of magnitude. It requires no expensive dedicated servers, no complex cabling, and no specialised maintenance personnel. Ordinary security installers — even technically-inclined end users — can deploy it rapidly.

For fragmented, budget-conscious scenarios like rural villages, residential communities, and small to medium campuses, this system achieves the perfect balance between functionality, cost, and ease of use. It not only solves the traditional surveillance pain point of "you can see it, but you can't find it," but also reserves ample room for future intelligent upgrades. As AI technology continues to push downward into the edge, this "Smart Frontend + Standard Backend" architecture is set to become the mainstream direction for small and medium-scale security systems.
